RO Membranes (MiiBTI)
Manufactured in-house at ORG's Ahmedabad facility using carefully selected raw materials and advanced automated production. Consistent process control ensures uniform active area and stable salt rejection. Each membrane is inspected and tested before approval.
Domestic RO Membranes
| Model | Total Area (sq ft) | Flow (GPD) | Salt Rejection |
|---|---|---|---|
| 1812-75-6 | 6 | 75 | 95–98% |
| 2012-90-7.5 | 7.5 | 90 | 95–98% |
| 2112-100-9 | 9 | 100 | 95–98% |
| 3012-300-21 | 21 | 300 | 95–98% |
Industrial RO Membranes
| Model | Total Area (sq ft) | Flow (GPD) | Salt Rejection |
|---|---|---|---|
| LE-4021-54 | 54 | 1300–1500 | 95–98% |
| BW-4021-54 | 54 | 1300–1500 | 99% |
| BW-4040-97 | 97 | 2400–2700 | 99% |
| BW-4040-108 | 108 | 2600–3000 | 99% |
| BW-8040-409 | 409 | 9700–11500 | 99% |
| BW-8040-431 | 431 | 10200–12100 | 99% |

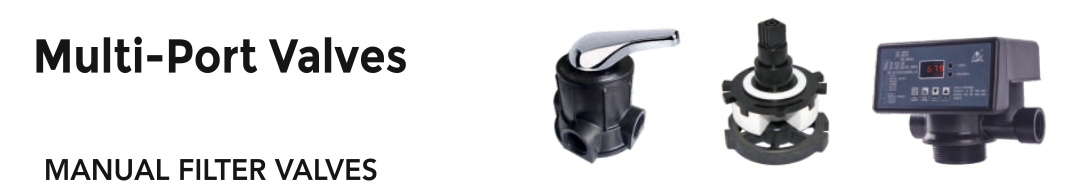

Multi-Port Valves (RUNXIN)
Since 2011, ORG is the exclusive India partner for RUNXIN — the world's largest multi-variable valve manufacturer, trusted in 159 countries. We supply the widest range of automatic multiport valves in India for softeners and filter systems.

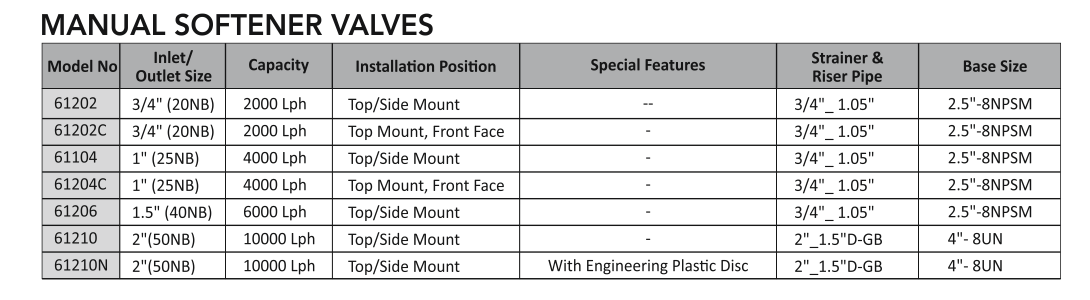

Manual Filter & Softener Valves
Models: 51202, 51202C, 51204N, 51206, 51208, 51210 (Filter) and 61202, 61104, 61206, 61210 (Softener). Capacities 2000–10000 LPH. Top/Side/Front mount options.
F-Series — Auto Filter (RO Pump Signal)
Models: F202Q2, F204Q2, F210Q2, S202Q2, S204Q2. Operates on pump ON signal. Simple wiring with RO system. Capacities 2000–10000 LPH.

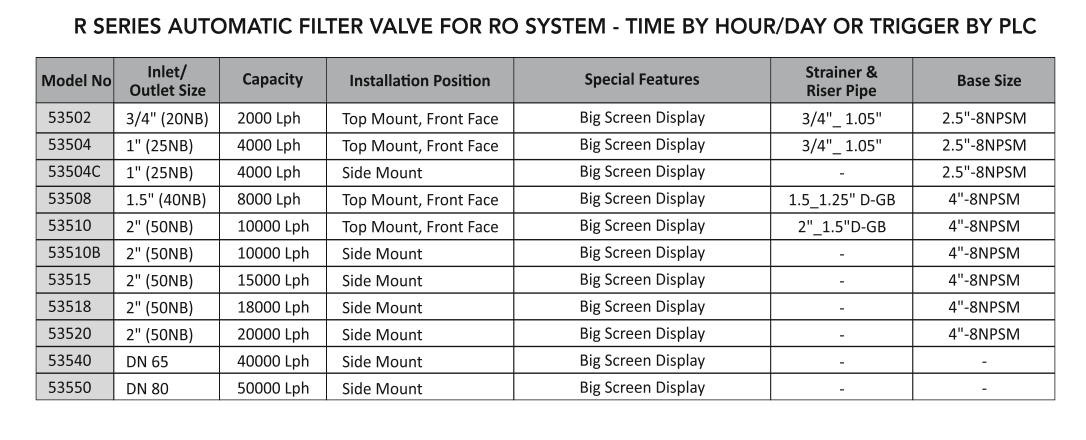

R-Series — Time / PLC Triggered
Models: 53502–53550. Big screen display. Backwash by hour/day scheduling or PLC trigger. Capacities from 2000 LPH (53502) to 50,000 LPH (53550, DN80).

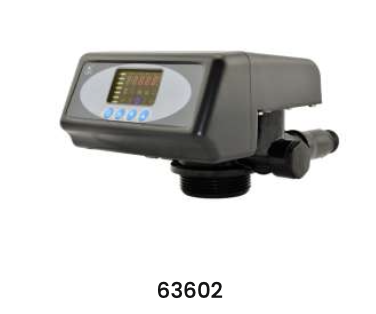

MPV 63602 / 63604 / 63608
Automatic softener multiport valves. Models 63602, 63604 (MPV for Softener), 63608, 63610B, 63615, 63618, 65603, 65605, 12504. Wide range for all softener sizes.

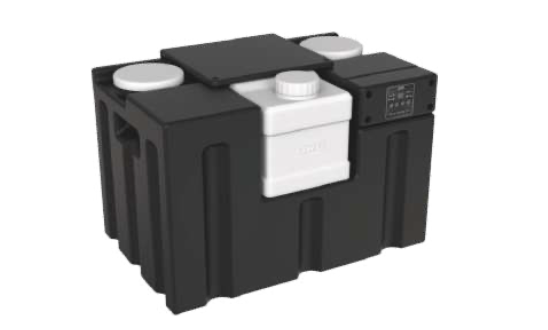

Digital Dosing Tank (DDT)
World's first automated chemical dilution & dosing system. Prevents dosing pump dry run damage, ensures precise dilution ratio via accurate chemical flow meter, eliminates human error in mixing.
Automatic Disk Filter
ORG disk pre-filter eliminates blockage using hundreds of PP filter disks with 700 precision grooves, providing more effective filtration and easier maintenance than conventional filters.
Industrial Ceramic Ball Valves
ORG's manual and motorised ceramic ball valves use premium corundum ceramic or silicon carbide cores sintered at ultra-high temperatures (1600°C / 2200°C) achieving Rockwell hardness HRA ≥ 85. Multi-process precision machining ensures perfect ball-seat fit — smooth operation with low torque, superior corrosion resistance and long service life.
2-Wire Motorised Ball Valve
Simple 2-wire control — reverse polarity to open/close. Ideal for basic automated applications.

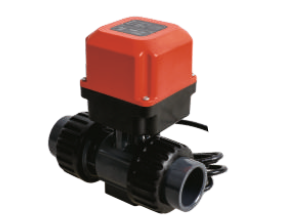

3-Wire Motorised Ball Valve
Open, Close and Common wires. Connect Open to Common to open; Close to Common to close. Precise control.

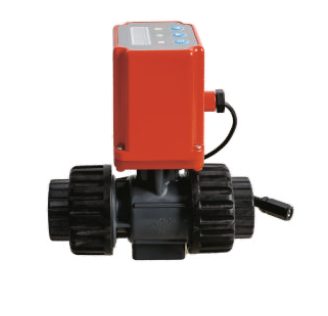

Duration Time Control Valve
Pre-set timed open/close cycles. Compatible with 12V or 24V DC. Minute or second mode, adjustable 000:01 to 999:59.

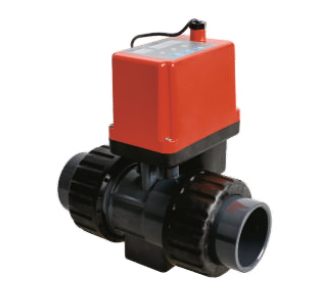

Point-in-Time Control Valve
Schedule specific open/close times for each day of the week (Mon–Sun). Ideal for automated irrigation and treatment cycles.
Automatic Water Level Controller with Ceramic Ball Valve
Three-component system: motorised ceramic ball valve (installed on tank inlet pipe, 24V DC, IP65 rated) + water level controller (230V AC input, supplies 24V DC to valve, IP65 ABS, outdoor-rated) + float switch. Fully automatic tank level management — no manual intervention needed.
Filter Housings & Canisters
10" Slim Line Filter Housing
Standard residential housing for 10" slim cartridges.
20" Slim Line Filter Housing
Extended 20" slim housing for larger capacity cartridges.
10" Mid Line Filter Housing
Larger diameter mid-line housing for higher flow rates.
20" Mid Line Filter Housing
20" mid-line housing for commercial/industrial applications.
20" Big Line Filter Housing
High-capacity big-line housing for industrial pre-filtration.
Bag Filter Housing (Big Line 20")
Accepts bag-type filter media for high-volume applications.
RO Housing 10"
Standard 10" RO membrane housing. Transparent and opaque variants.
Membrane Housing (12" & 8" Welded)
Welded membrane housings for industrial inline filters.
